SpringCloud (一) : 服务注册与发现

spring cloud 为开发人员提供了快速构建分布式系统的一些工具，包括配置管理、服务发现、断路器、路由、微代理、事件总线、全局锁、决策竞选、分布式会话等等。

注册中心

本篇文章源码地址case-01-start

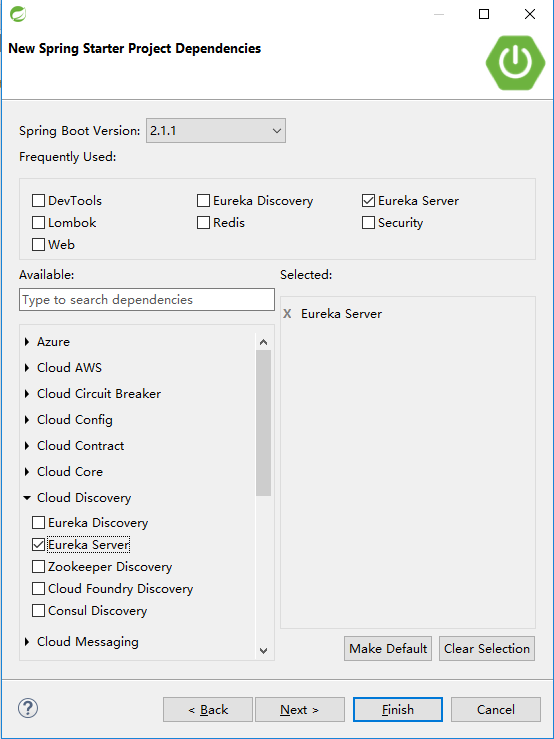

创建springboot工程,选中eureka server

一直下一步 创建完成之后的pom文件如下:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.1.RELEASE</version>
		<relativePath/>
	</parent>
	<groupId>com.perfree</groupId>
	<artifactId>spring-cloud-start</artifactId>
	<version>1.0</version>
	<packaging>jar</packaging>
	<name>spring-cloud-start</name>
	<description>spring-cloud-start</description>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.M3</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
	</repositories>
</project>

2. 开启一个eureka服务

在启动类添加@EnableEurekaServer注解,代表为一个服务注册组件

声明一个server

eureka是一个高可用的组件,在默认情况下erureka server也是一个eureka client ,必须要指定一个server,在application.properties配置如下:

#端口号
server.port=8881
#Eureka实例所在的主机名
eureka.instance.hostname=127.0.0.1
#是否在eureka服务器上注册自己的信息以供其他服务发现,server端不需要,所以写成false,默认true
eureka.client.register-with-eureka=false
#此客户端是否获取eureka服务器注册表上的注册信息，默认为true
eureka.client.fetch-registry=false

启动并访问

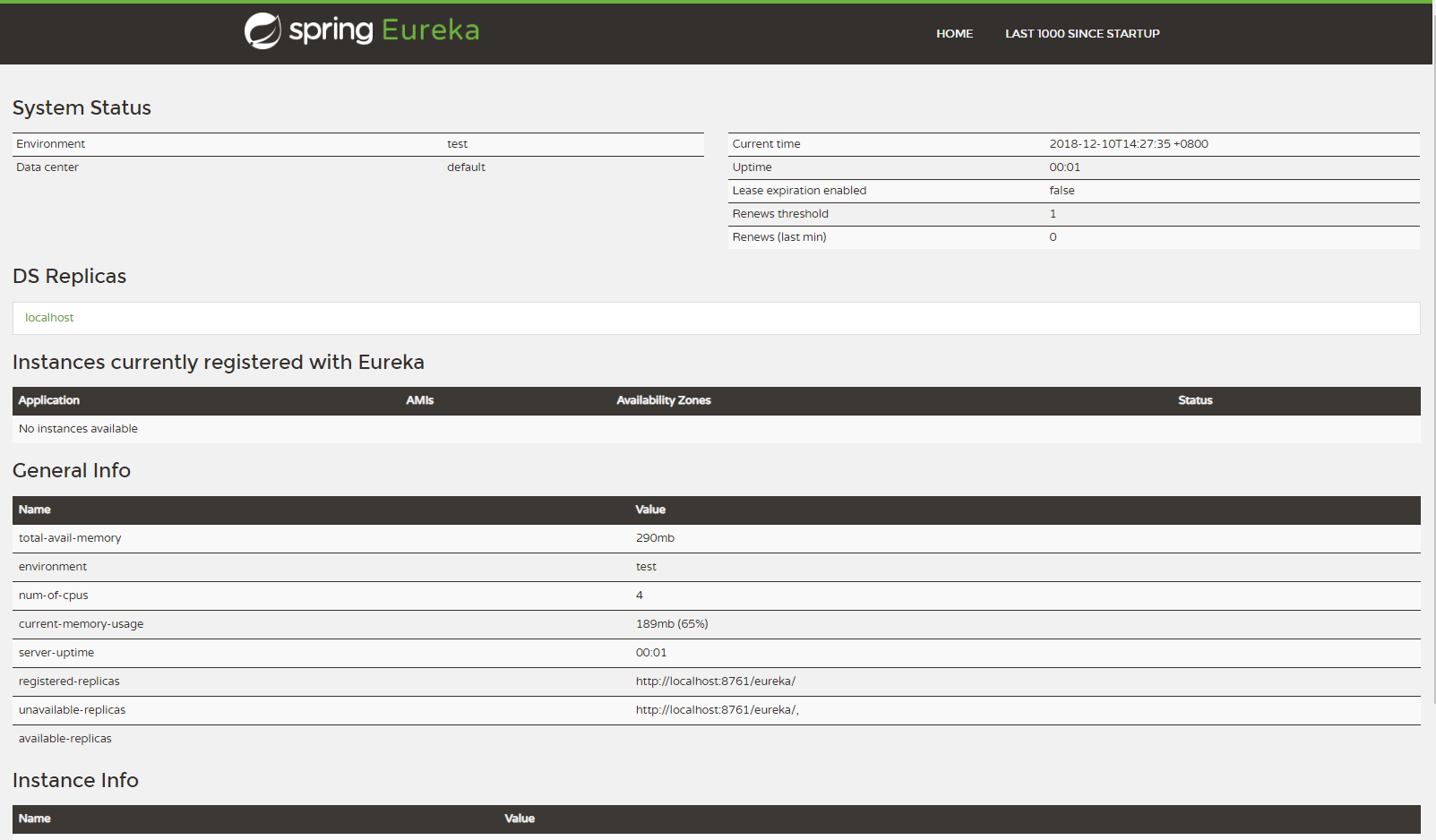

像普通springboot项目那样启动我们的服务,访问http://127.0.0.1:8881/ 因为还没有服务来注册,所以是还没有服务被发现~

创建一个服务提供者

创建步骤同server一样,pom文件一览:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.1.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.perfree</groupId>
	<artifactId>spring-cloud-client</artifactId>
	<version>1.0</version>
	<packaging>jar</packaging>
	<name>spring-cloud-client</name>
	<description>spring-cloud-client</description>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.M3</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
	</repositories>
</project>

声明自己是一个eurekaclient

在启动类添加@EnableEurekaClient注解

application.properties配置文件

#端口号
server.port=8882
#应用名称
spring.application.name=myClient
#服务中心地址
eureka.client.service-url.defaultZone=http://localhost:8881/eureka

启动服务,观察变化

当我们启动之后,再来观察http://127.0.0.1:8881/ 页面,如下 你会发现一个服务已经注册在服务中了，服务名为MYCLIENT,端口为8882

接下来,我们添加一个controller,提供一个hello的接口: 新建controller包,在里边新建HelloController类,如下:

package com.perfree.controller;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {

	@RequestMapping("/hello")
	public String hello() {
		return "Hello";
	}
}

可以看到,该接口只返回了Hello字符串,接下来我们创建服务消费者进行调用

服务消费者

为了让我们更能够体会到Eureka所发挥的作用，我们下面来构建一个服务消费者，该服务消费者将调用spring-cloud-client所提供的服务。

创建项目

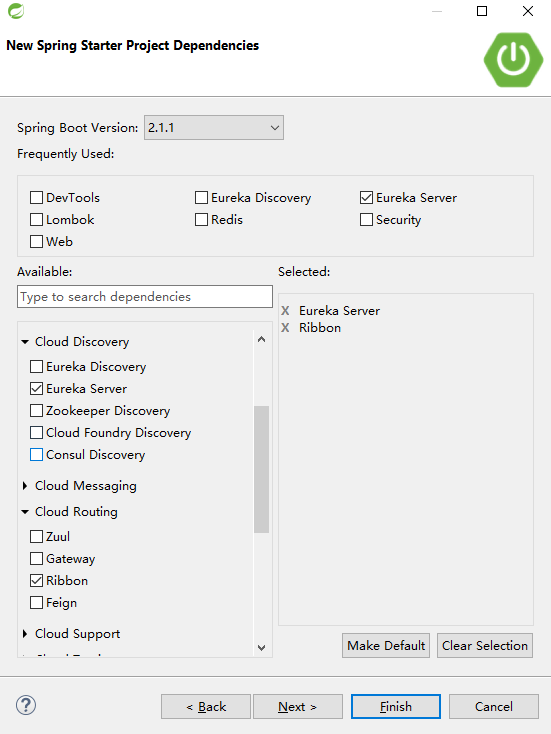

勾选如下: 完整pom文件一览:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.1.RELEASE</version>
		<relativePath/>
	</parent>
	<groupId>com.perfree</groupId>
	<artifactId>spring-cloud-ribbon</artifactId>
	<version>1.0</version>
	<packaging>jar</packaging>
	<name>spring-cloud-ribbon</name>
	<description>spring-cloud-ribbon</description>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.M3</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
	</repositories>
</project>

spring-cloud-starter-ribbon，该子项目提供客户端负载均衡功能，可以自动从Eureka服务器中获取服务提供者的地址列表，从而能够发起相应的调用

application.properties配置文件

#端口号
server.port=8883
#应用名称
spring.application.name=myRibbon
#服务中心地址
eureka.client.service-url.defaultZone=http://localhost:8881/eureka

启动类注入RestTemplate

package com.perfree;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

@SpringBootApplication
@EnableDiscoveryClient
public class SpringCloudRibbonApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringCloudRibbonApplication.class, args);
	}

	//注入RestTemplate
	@Bean
	public RestTemplate restTemplate() {
		return new RestTemplate();
	}
}

编写HelloController调用服务Hello接口

package com.perfree.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

@RestController
public class HelloController {

	@Autowired
	private RestTemplate restTemplate;

	@RequestMapping("/")
	public String hello() {
		return restTemplate.getForEntity("http://127.0.0.1:8882/hello", String.class).getBody()+" Spring Cloud";
	}
}

启动ribbon项目

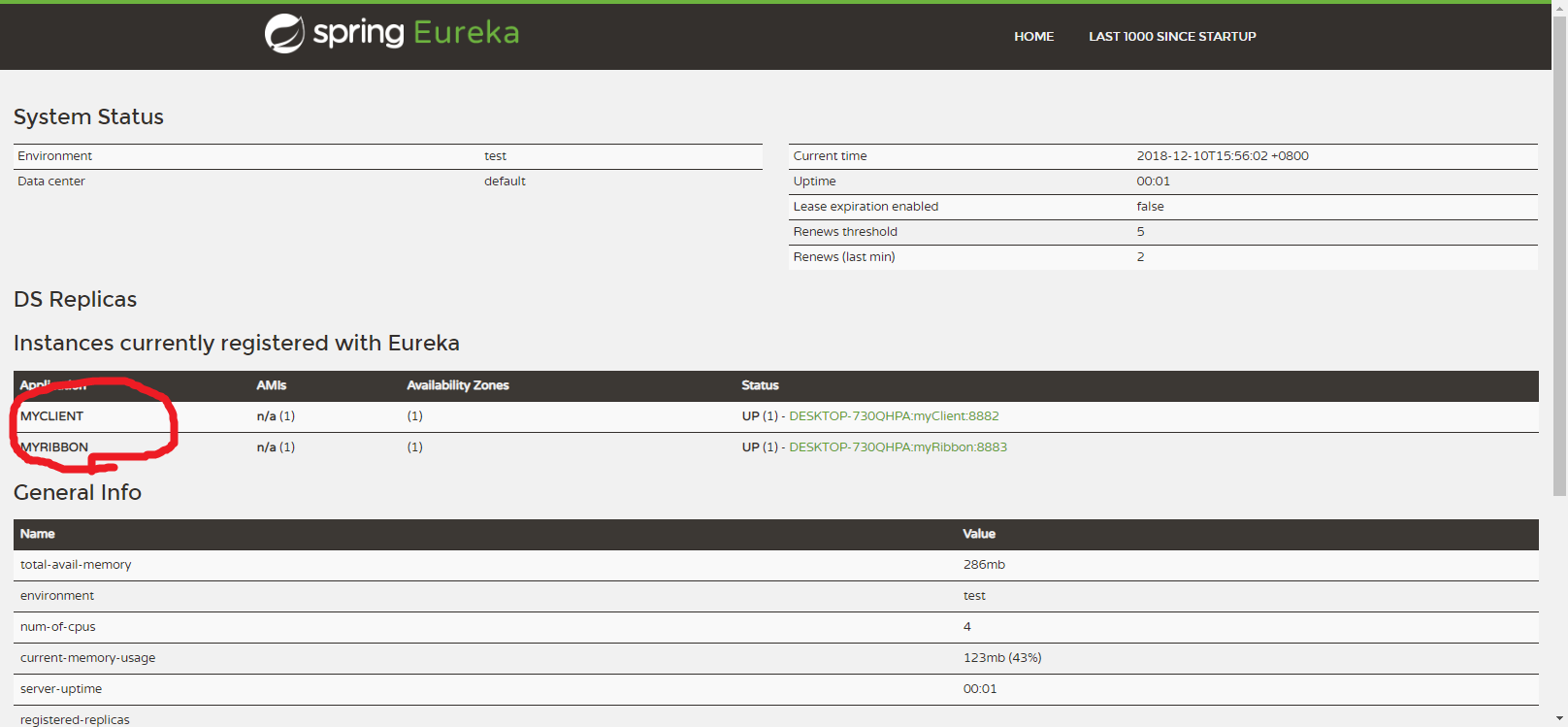

启动成功之后可以看到注册中心: 我们接着访问http://127.0.0.1:8883/ 已经调用成功~
